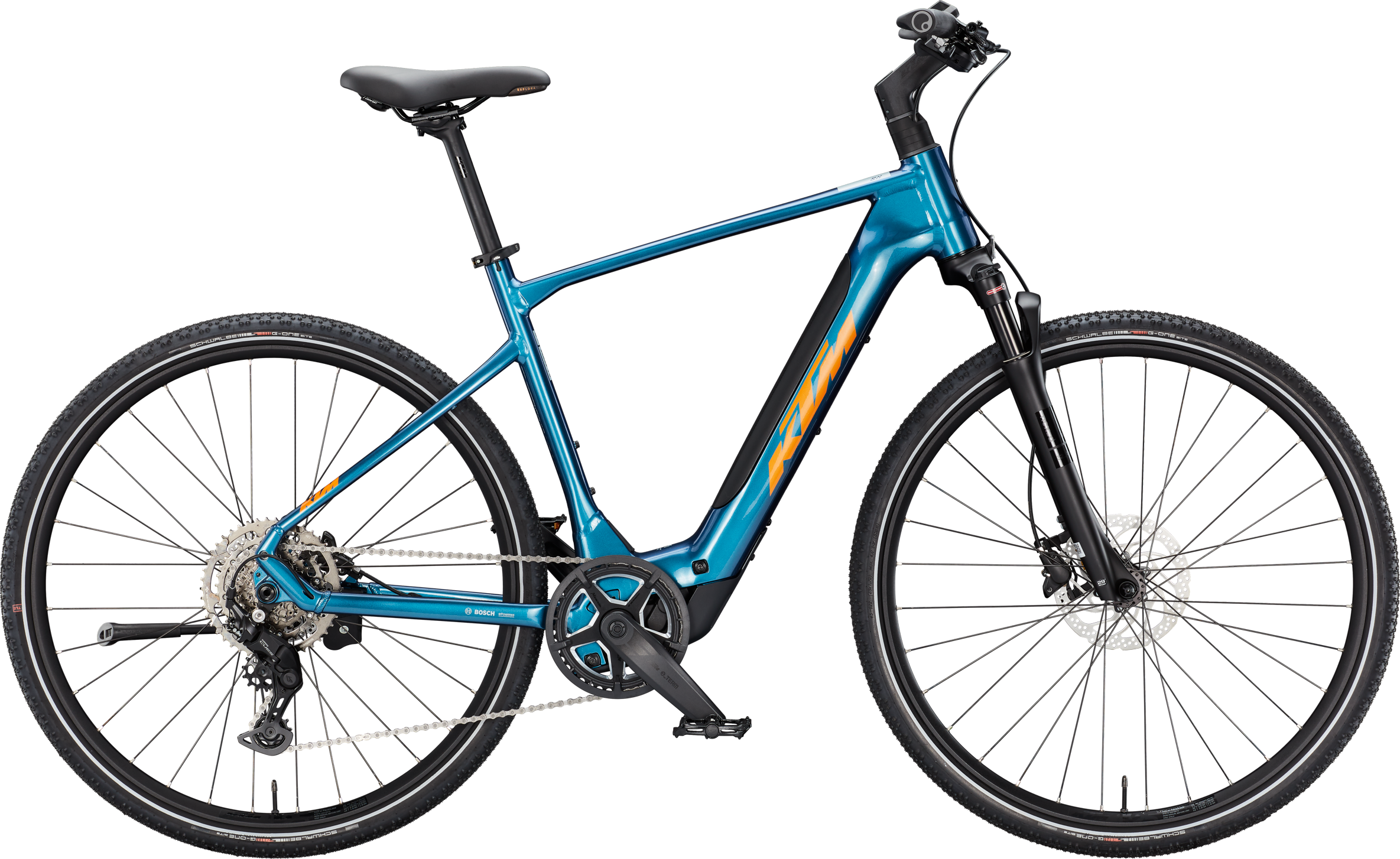

KTM Macina Cross SX 20 2025
€3,134.05at BikeExchange · sold by RADWELTMICHIKNOPFshop's RRP €3,299
Bosch · 55 Nm · 400 Wh · 19.5 kg
Buy at BikeExchangeWhere it stands
In stock in 60 cm · price read 08:26 today · unchanged since the last check
Where it stands
This listing is in our comparison but is not ranked: e-bikes are not value-ranked yet: we list them without ranking them.
What you get
- Kind
- trekking or city e-bike as BikeExchange shelves it
- Motor
- Bosch Bosch PERFORMANCE SX BDU3144 - 25km/h / 55Nm
- Torque
- 55 Nm as the shop states
- Battery
- 400 Wh, integrated in the frame
- Class
- Pedelec up to 25 km/h
- Display
- Bosch PURION 200 Display & Remote
- Permitted total weight
- 138 kg
- Frame
- Aluminium Macina Trekking Onroad Alloy 6061 CPT400 Bosch BDU31/T-4110
- Drivetrain
- Shimano CUES, 9-speed
- Wheels
- model not recognised: KTM Line - Shimano Deore M5100 CL 32H 100-5QR, Black Jack Ready25 32H 622x25TC, DT Champion 2.0 black \ KTM Line - Shimano TC500 CL 32H 142-
- Brakes
- 2-piston, the maker's base series
- Weight
- 19.5 kg as published
- Power meter
- No
- Suspension
- hardtail (front suspension only)
- Fork
- SR Suntour, 63 mm travel
- Comes with
- kickstand
- Tyres
- Schwalbe G-One Bite Evo TLE 45-622
The compromises
- 9-speed drivetrain, fewer gears than the 11- and 12-speed groupsets on most e-bikes.
- Mechanical shifting, at a price where electronic groupsets are common.
- Wheels not identified from the listing, so we scored them level with basic aluminium rather than guess.
- Aluminium frame, at a price where carbon is common.
Your size
What BikeExchange lists, and what it has today
60 cmin stock
Where to buy
BikeExchange is the only one of the 22 shops we check that sells this bike.
Price so far
€3,134.05 at every one of our 3 checks since 25 Sept.
- BikeExchange states an RRP of €3,299 (5% off). That is the shop's claim; we rank on today's price, never on the discount.
Every check
| Checked | Price | Availability |
|---|---|---|
| 25/09/2026, 09:46:40 | €3,134.05 | limited |
| 25/09/2026, 21:15:41 | €3,134.05 | limited |
| 26/09/2026, 08:26:24 | €3,134.05 | limited |
How sure we are
We read 5 of 7 key facts off BikeExchange's page; not stated: wheels, brakes.
Read 08:26 today. The full audit trail shows the source text behind every fact. Report a mistake
Full specification as published by BikeExchange
| Gewicht* | 19.5 |
|---|---|
| Rahmen | Macina Trekking Onroad Alloy 6061 CPT400 Bosch BDU31/T-4110 |
| Zulässiges Gesamtgewicht | 138 |
| Bremse | Shimano MT201 / MT200 2-Piston |
| Bremsscheiben | Shimano RT30 CL 180 / RT30 CL 160 |
| Reifen vorne | Schwalbe G-One Bite Evo TLE 45-622 |
| Reifen hinten | Schwalbe G-One Bite Evo TLE 45-622 |
| Laufräder | KTM Line - Shimano Deore M5100 CL 32H 100-5QR, Black Jack Ready25 32H 622x25TC, DT Champion 2.0 black \ KTM Line - Shimano TC500 CL 32H 142-12TA, Black Jack Ready25 32H 622x25TC, DT Alpine II 2.34 black |
| Display | Bosch PURION 200 Display & Remote |
| Vorbau | KTM Line +20° ICR |
| Steuersatz | Acros AICR internal 1.1/8"-1.5" angle limit |
| Lenker | KTM TEAM II low rizer 640mm |
| Griffe | ERGON GS1 |
| Akkukapazität | 400.0 |
| Motor | Bosch PERFORMANCE SX BDU3144 - 25km/h / 55Nm |
| Akku | Bosch CompactTUBE 400Wh |
| Ständer | Hebie 28" adjustable |
| Umwerfer hinten | Shimano CUES U4000-9 LG shadow |
| Kurbelgarnitur | KTM E-TEAM2 ISIS 170mm Q8 |
| Kettenblätter | Shimano LG400-9 / 11-46 |
| Pedale | KTM TEAM cross alloy ballfree |
| Schalthebel | Shimano CUES U4000-9 display |
| Umwerfer | Shimano CUES U4000-9 LG shadow |
| Sattel | Selle Royal Explora Gel |
| Sattelklemme | KTM Line JD-SC99 - 31,8mm |
| Sattelstütze | KTM TEAM II 27.2/350 |
| Gabel | Suntour NCX32-D Air LO 63mm 1 1/8 |
| Jahr | 2025 |
The shop's feature list
- Bosch
- 400wh
- Kettenschaltung
- Beschreibung
