E-bikes › KTM › Macina Gran
In our comparison, not currently a pick

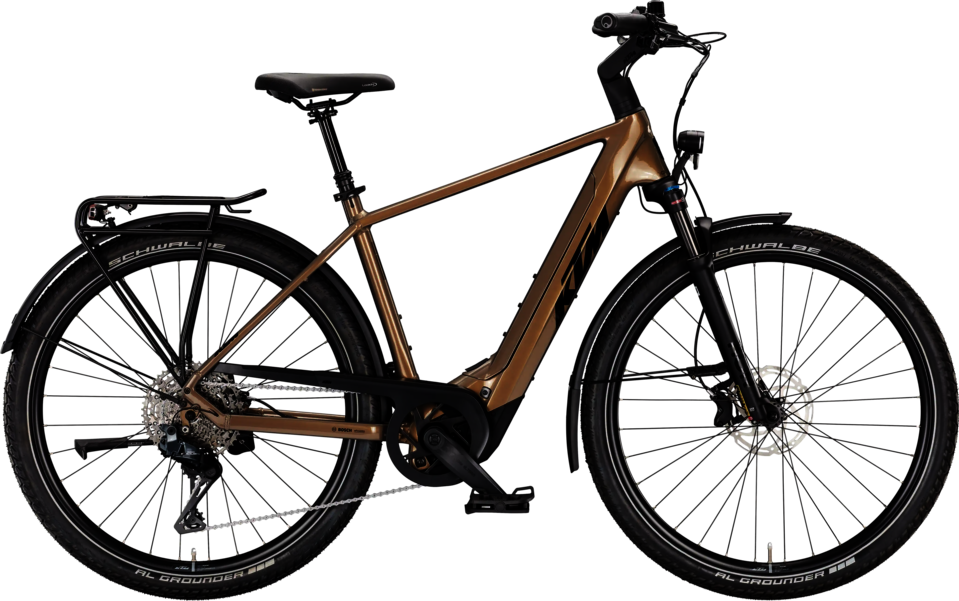

KTM MACINA GRAN 810 Di2 800 Wh High Step 2026
Bosch · 100 Nm · 800 Wh
Buy at BikeExchangeWhere it stands
In stock in 51, 56 and 60 cm · price read 08:26 today · unchanged since the last check
Where it stands
This listing is in our comparison but is not ranked: e-bikes are not value-ranked yet: we list them without ranking them.
What you get
- Kind
- trekking or city e-bike as BikeExchange shelves it
- Motor
- Bosch Bosch | Bosch Performance Line CX BDU384Y, mid-drive, max 100 Nm, 250 W rated power, 36 V
- Torque
- 100 Nm as the shop states
- Battery
- 800 Wh, integrated in the frame
- Class
- not stated by the shop
- Display
- Bosch Kiox 500 Display - the smart system
- Frame
- Aluminium Macina Trekking Onroad Alloy 6061, Bosch PT800 motor integration
- Drivetrain
- Shimano CUES, electronic
- Wheels
- Aluminium, basic aluminium Ryde Rival30 rims (622×30C, 32H), Shimano Deore M5100 CL front hub 100×5QR, Shimano Deore M5100 CL rear hub 135×5QR
- Brakes
- Hydraulic disc, 4-piston
- Weight
- not stated by the shop
- Power meter
- No
- Dropper post
- Yes
- Comes with
- kickstand
- Tyres
- Schwalbe Al Ground Performance RaceGuard 60-622 Reflex (front & rear)
The compromises
- Basic aluminium wheels.
- Aluminium frame, at a price where carbon is common.
- No power meter, which many bikes at this price include.
Your size
What BikeExchange lists, and what it has today
Where to buy
Other shops list what looks like this bike, but we cannot confirm it is the same build, because the model year or drivetrain is not settled, so we do not compare their prices.
Price so far
€4,999 at every one of our 3 checks since 25 Sept.
Every check
| Checked | Price | Availability |
|---|---|---|
| 25/09/2026, 09:46:47 | €4,999 | in stock |
| 25/09/2026, 21:15:48 | €4,999 | in stock |
| 26/09/2026, 08:26:30 | €4,999 | in stock |
How sure we are
We read 6 of 7 key facts off BikeExchange's page; not stated: weight.
Read 08:26 today. The full audit trail shows the source text behind every fact. Report a mistake
Full specification as published by BikeExchange
| Rahmenmaterial | Aluminium |
|---|---|
| Rahmen | Macina Trekking Onroad Alloy 6061, Bosch PT800 motor integration |
| Bremse | Tektro TKD-139 / HD-E730 hydraulic disc Brake, 4-piston |
| Bremsscheiben | Tektro TR-45 2.3 mm, CL 180 front / CL 160 rear |
| Bremshebel | Tektro TKD-139 / HD-E730 |
| Laufräder | Ryde Rival30 rims (622×30C, 32H), Shimano Deore M5100 CL front hub 100×5QR, Shimano Deore M5100 CL rear hub 135×5QR |
| Reifen | Schwalbe Al Ground Performance RaceGuard 60-622 Reflex (front & rear) |
| Vorbau | KTM Line adjust. 0–60° ICR |
| Steuersatz | Acros AICR internal, 1.5"-1.5" |
| Lenker | Ergotec Lady Town, 630 mm (46–51) / 690 mm (51–60) |
| Griffe | Ergon GP10 |
| Display | Bosch Kiox 500 Display - the smart system |
| Akkukapazität | 800 Wh |
| Ladegerät | Bosch Standard Charger 4A |
| Motorhersteller | Bosch |
| Akku | Bosch PowerTube 800 horizontal, integrated |
| Motor | Bosch Performance Line CX BDU384Y, mid-drive, max 100 Nm, 250 W rated power, 36 V |
| Motorposition | Mittelmotor |
| Ständer | KTM 28" adjustable MY2025 |
| Schaltung | Shimano CUES Di2 drivetrain, 1×11, FSA steel 42T Direct Mount chainring, KMC e11 Sport EPT chain |
| Umwerfer hinten | Shimano CUES Di2 U8050-11 SGS Shadow |
| Kurbelgarnitur | KTM E-Team2 ISIS, 170 mm |
| Schalthebel | Shimano CUES Di2 EN605 Switch |
| Sattel | Selle Royal Lookin |
| Sattelstütze | KTM Line dropper + suspension, 30.9 mm, 100 mm travel |
| Gabel Bauart | Federgabel |
| Federweg vorne | 80mm |
| Jahr | 2026 |
The shop's feature list
- Bosch
- 800wh
- Kettenschaltung
- Beschreibung
