In our comparison, not currently a pick

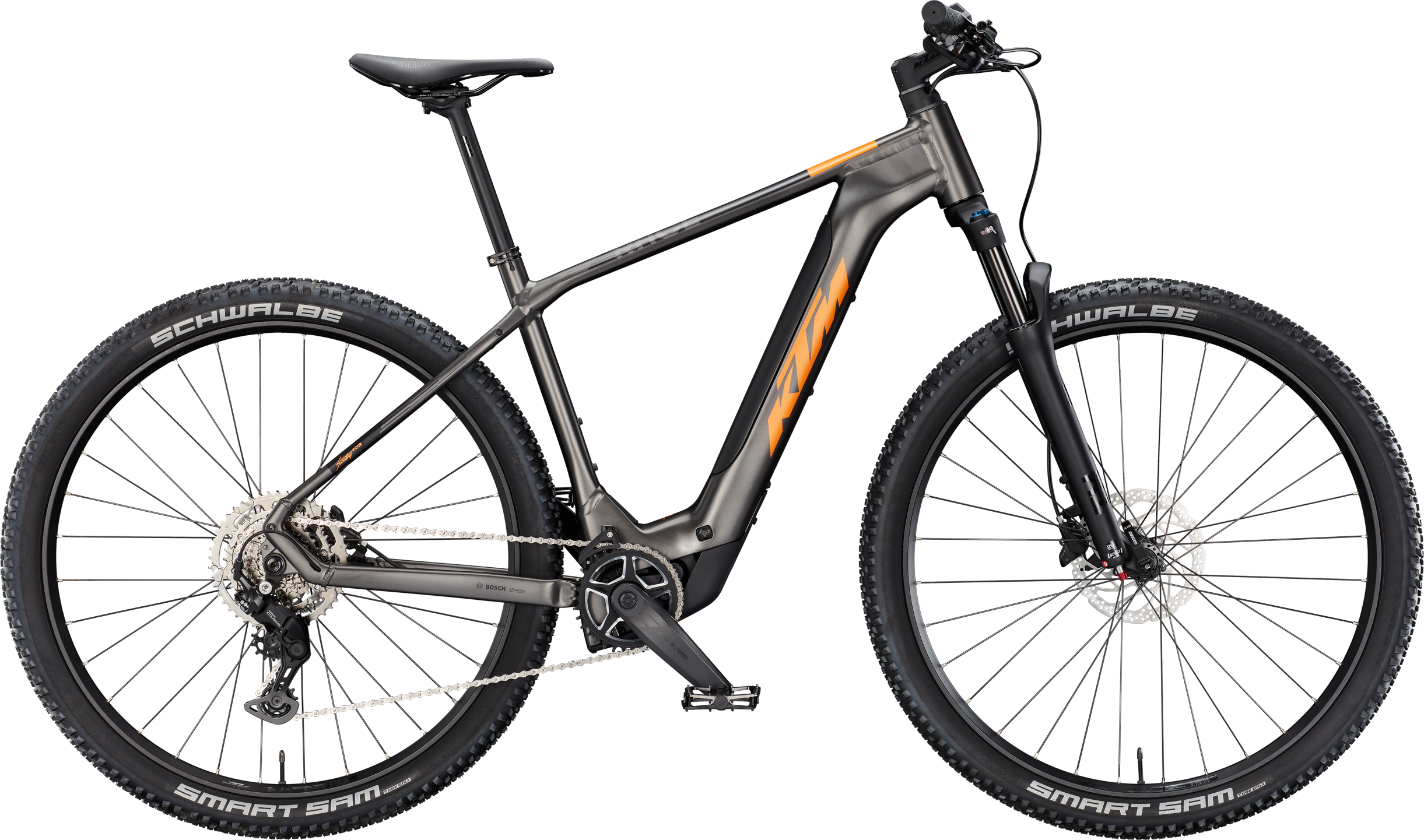

KTM Macina Race SX 20 2025
Bosch · 55 Nm · 400 Wh · 20.5 kg
Buy at BikeExchangeWhere it stands
In stock in XL · price read 08:07 today · unchanged since the last check
Where it stands
This listing is in our comparison but is not ranked: e-bikes are not value-ranked yet: we list them without ranking them.
What you get
- Kind
- e-MTB as BikeExchange shelves it
- Motor
- Bosch Bosch PERFORMANCE SX BDU3144 - 25km/h / 55Nm
- Torque
- 55 Nm as the shop states
- Battery
- 400 Wh, integrated in the frame
- Class
- Pedelec up to 25 km/h
- Display
- Bosch PURION 200 Display & Remote
- Permitted total weight
- 139 kg
- Frame
- Aluminium Macina MTB 29" Alloy 6061 UDH CPT400 Bosch BDU31 / M-4810
- Drivetrain
- Shimano CUES, 9-speed
- Wheels
- model not recognised: KTM Line - Shimano TC500B CL 32H 110-15TA, Black Jack Ready30 32H 622x30TC, DT Champion 2.0 black \ KTM Line - Shimano TC500B CL 32H 148-12T
- Brakes
- 2-piston, the maker's base series
- Weight
- 20.5 kg as published
- Power meter
- No
- Suspension
- hardtail (front suspension only)
- Fork
- SR Suntour 32, 100 mm travel
- Tyres
- Schwalbe Smart Sam Perf .57-622
The compromises
- 9-speed drivetrain, fewer gears than the 11- and 12-speed groupsets on most e-bikes.
- Mechanical shifting, at a price where electronic groupsets are common.
- Wheels not identified from the listing, so we scored them level with basic aluminium rather than guess.
- Aluminium frame, at a price where carbon is common.
Your size
What BikeExchange lists, and what it has today
This brand publishes no centimetre equivalence we can verify, so the bike appears only when you pick a letter size.
Where to buy
Other shops list what looks like this bike, but we cannot confirm it is the same build, because the model year or drivetrain is not settled, so we do not compare their prices.
Price so far
€2,606 at every one of our 3 checks since 25 Sept.
- BikeExchange states an RRP of €3,299 (21% off). That is the shop's claim; we rank on today's price, never on the discount.
Every check
| Checked | Price | Availability |
|---|---|---|
| 25/09/2026, 08:47:51 | €2,606 | limited |
| 25/09/2026, 20:54:55 | €2,606 | limited |
| 26/09/2026, 08:07:56 | €2,606 | limited |
How sure we are
We read 5 of 7 key facts off BikeExchange's page; not stated: wheels, brakes.
Read 08:07 today. The full audit trail shows the source text behind every fact. Report a mistake
Full specification as published by BikeExchange
| Gewicht* | 20.5 |
|---|---|
| Rahmen | Macina MTB 29" Alloy 6061 UDH CPT400 Bosch BDU31 / M-4810 |
| Zulässiges Gesamtgewicht | 139 |
| Bremse | Shimano MT201 / MT200 2-Piston |
| Bremsscheiben | Shimano RT30 CL 180 / RT30 CL 160 |
| Reifen vorne | Schwalbe Smart Sam Perf .57-622 |
| Reifen hinten | Schwalbe Smart Sam Perf .57-622 |
| Laufräder | KTM Line - Shimano TC500B CL 32H 110-15TA, Black Jack Ready30 32H 622x30TC, DT Champion 2.0 black \ KTM Line - Shimano TC500B CL 32H 148-12TA, Black Jack Ready30 32H 622x30TC, DT Alpine II 2.34 black |
| Display | Bosch PURION 200 Display & Remote |
| Vorbau | KTM COMP +7° ICR |
| Steuersatz | Acros AICR internal 1.1/8"-1.5" angle limit |
| Lenker | KTM TEAM II rizer15 720mm |
| Griffe | KTM COMP Lock |
| Akkukapazität | 400.0 |
| Motor | Bosch PERFORMANCE SX BDU3144 - 25km/h / 55Nm |
| Akku | Bosch CompactTUBE 400Wh |
| Kurbelgarnitur | KTM E-TEAM2 ISIS 170mm Q8 |
| Kettenblätter | Shimano LG400-9 / 11-46 |
| Pedale | MTB-Pedal flat VPE-527 alloy |
| Schalthebel | Shimano CUES U4000-9 display |
| Umwerfer hinten | Shimano CUES U4000-9 LG shadow |
| Umwerfer | Shimano CUES U4000-9 LG shadow |
| Sattel | KTM Line Sport |
| Sattelklemme | KTM TEAM Light CL-FJ21 - 31,8mm |
| Sattelstütze | KTM TEAM II 27.2/400 |
| Gabel | Suntour X1 32 AIR 29" LOR 100mm taper |
| Jahr | 2025 |
The shop's feature list
- Bosch
- 400wh
- Shimano Cues
- Beschreibung
