Gravel bikes › Bombtrack › Arise SG
In our comparison, not currently a pick

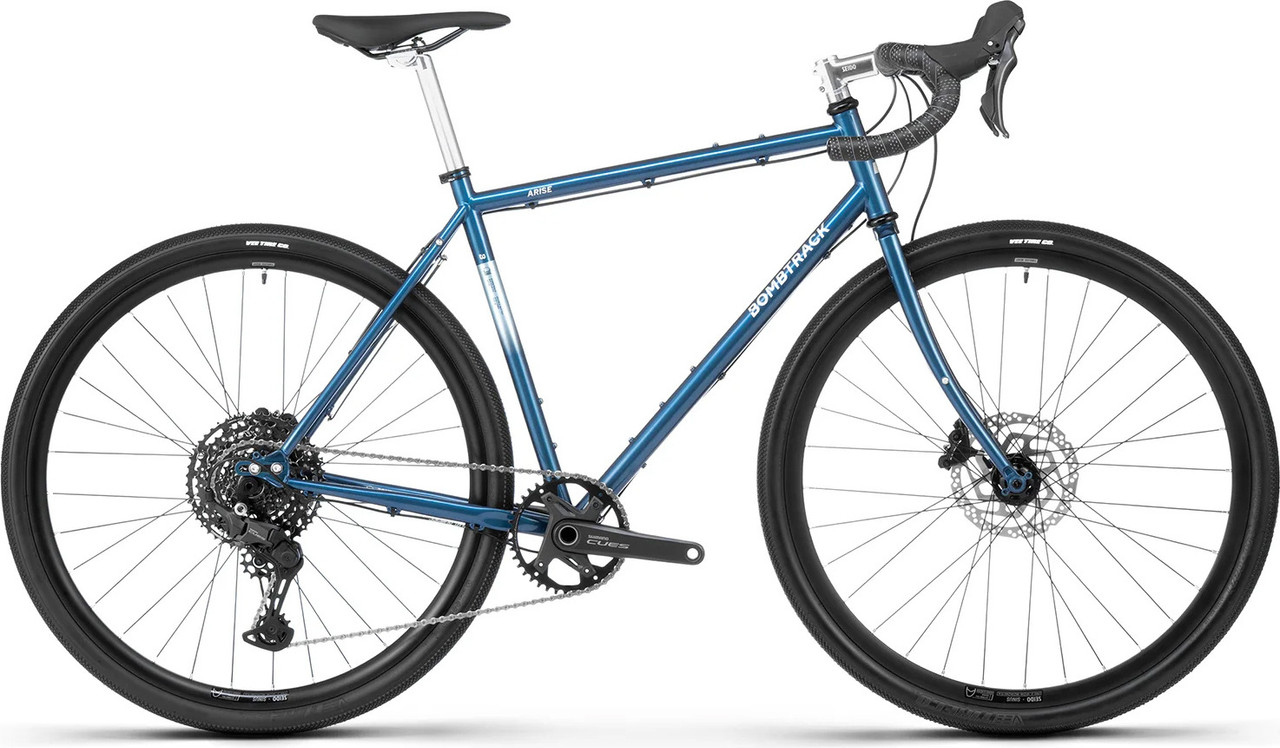

Bombtrack Arise SG CUES 1x10-speed gravel bike
€1,990at Bike-Componentsshop's RRP €2,399.99
Steel · Shimano CUES 10-speed · hydraulic disc
Buy at Bike-ComponentsWhere it stands
In stock in S, M, L and XL · price read 08:35 today · unchanged since the last check
Where it stands
Priced close to what German shops charge for this level of equipment, so it does not clear the margin we require before naming a pick.
Our pick · €1,500 – €2,000
- Cube Nuroad C:62 ONE 2027 at BikeExchange€1,999GRX instead of CUES, entry-level carbon rather than unidentified wheels, carbon rather than steel frame.
What you get
- Frame
- Steel Bombtrack Arise
- Drivetrain
- Shimano CUES, 10-speed
- Wheels
- model not recognised: Seido Sinus i21 TLR, Hubs: Seido ARC
- Brakes
- Hydraulic disc
- Weight
- not stated by the shop: not scored
- Power meter
- No
- Tyres
- VEE Tire Speedster, XS-S: 650B x 38 C / M-XL: 700C x 40C
The compromises
- Wheels not identified from the listing, so we scored them level with basic aluminium rather than guess.
Your size
What Bike-Components lists, and what it has today
Sin stock
Min stock
Lin stock
XLin stock
This brand publishes no centimetre equivalence we can verify, so the bike appears only when you pick a letter size.
Where to buy
Bike-Components is the only one of the 22 shops we check that sells this bike.
Price so far
€1,990 at every one of our 21 checks since 4 Sept.
- Bike-Components states an RRP of €2,399.99 (17% off). That is the shop's claim; we rank on today's price, never on the discount.
Every check
| Checked | Price | Availability |
|---|---|---|
| 04/09/2026, 11:26:24 | €1,990 | in stock |
| 04/09/2026, 16:09:10 | €1,990 | in stock |
| 04/09/2026, 22:50:31 | €1,990 | in stock |
| 05/09/2026, 07:08:19 | €1,990 | in stock |
| 05/09/2026, 15:33:30 | €1,990 | in stock |
| 06/09/2026, 07:43:36 | €1,990 | in stock |
| 07/09/2026, 08:50:44 | €1,990 | in stock |
| 08/09/2026, 08:11:04 | €1,990 | in stock |
| 09/09/2026, 11:33:53 | €1,990 | in stock |
| 10/09/2026, 08:09:48 | €1,990 | in stock |
| 11/09/2026, 08:16:24 | €1,990 | in stock |
| 12/09/2026, 08:14:36 | €1,990 | in stock |
| 13/09/2026, 08:11:25 | €1,990 | in stock |
| 14/09/2026, 08:07:53 | €1,990 | in stock |
| 15/09/2026, 08:13:40 | €1,990 | in stock |
| 16/09/2026, 08:09:10 | €1,990 | in stock |
| 16/09/2026, 12:17:09 | €1,990 | in stock |
| 16/09/2026, 22:00:33 | €1,990 | in stock |
| 17/09/2026, 08:42:06 | €1,990 | in stock |
| 18/09/2026, 08:36:06 | €1,990 | in stock |
| 19/09/2026, 08:35:29 | €1,990 | in stock |
How sure we are
We read 5 of 7 key facts off Bike-Components's page; not stated: wheels, weight. Anything we could not read is scored below the cheapest option, so a gap never flatters a bike.
Read 08:35 today. The full audit trail shows the source text behind every fact. Report a mistake
Full specification as published by Bike-Components
| Application | Gravel |
|---|---|
| Brake Type | disc |
| Frame material | Steel (CrMo) |
| Fork material | Steel (CrMo) |
| Gender | Women's, Men´s |
| Seatpost diameter | 27,2 mm |
| Chain | Shimano LG500 |
| Brakes | Shimano CUES U6030 |
| Cassette | Shimano CUES CS-LG400, 11-48 T, 10-speed |
| Crankset | Shimano CUES U6030, 40T, 1-speed |
| Rear Wheel Tyre | VEE Tire Speedster, XS-S: 650B x 38 C / M-XL: 700C x 40C |
| Front Wheel Tyre | VEE Tire Speedster, XS-S: 650B x 38 C / M-XL: 700C x 40C |
| Pedals | without |
| Saddle | Seido Comp |
| Seatpost | Seido Yew Aluminum, 27,2 mm x 350 mm |
| Shift/Brake Lever | Shimano CUES U6030 |
| Derailleur | Shimano CUES RD-U6000 GS, 10-speed |
| Front Derailleur | without |
| Bottom Bracket | BSA 68 |
| Frame | Bombtrack Arise |
| Headset | Neco H282, EC34/28,6-EC34/30 |
| Max. Disc Brake Size Rear | 160 mm |
| Max. Disc Brake Size Front | 180 mm |
| Chainring Count Compatibility | 1x, 2x |
| Max. Chainring Size | 1x 44T, 2x 36-50T |
| Wheel size | 27.5" (650B) | 28" |
| Crank Arm Length | 170,0 mm | 175,0 mm |
| Fork Offset | 55 mm |
| Brake Disc Size | 180 mm (Front) / 160 mm (Rear) |
| Fork | Bombtrack |
| Handlebar | Bombtrack CX-10 |
| Brake Discs | Shimano SM-RT26 |
| Wheelset | Seido Sinus i21 TLR, Hubs: Seido ARC |
| Stem | Seido Meander, -6° |
| Head Tube Angle | 70.5 | 71 |
| Stack | 538 mm | 572 mm | 602 mm | 631 mm |
| Standover Height | 762 mm | 799 mm | 828 mm | 857 mm |
| Wheelbase | 1016 mm | 1045 mm | 1065 mm | 1090 mm |
| Reach | 370 mm | 379 mm | 394 mm | 409 mm |
| Chainstay Length | 420 mm | 435 mm |
| Seat Tube Angle | 73.5 | 73 |
| BB Drop | 55 mm | 70 mm |
| Drop Bar Width | 42 cm | 44 cm |
| Stem Length | 80 mm |
| Recommended Rider Height | 160 - 171 cm | 170 - 181 cm | 179 - 190 cm | 188 - 199 cm |
| Frame Size | 49 cm | 52 cm | 55 cm | 58 cm |
| Head Tube Length | 130 mm | 150 mm | 180 mm | 210 mm |
| Seat Tube Length | 490 mm | 520 mm | 550 mm | 580 mm |
| Effective Top Tube Length | 529 mm | 554 mm | 578 mm | 602 mm |
The shop's feature list
- Explore New Trails with the Bombtrack Arise SG CUES 1x10 gravel bike Discover the perfect blend of durability and versatility with the Bombtrack Arise SG CUES 1x10 gravel bike, designed for the gravel roads that call for adventure. This bike is equipped with a robust Shimano CUES U6030 1-speed crankset and a wide-ranging Shimano CUES CS-LG400, 11-48 T, 10-speed cassette to tackle any hill with ease. The frame and fork, crafted from high-quality CrMo steel, offer resilience and a smooth ride on rough terrains. With a Shimano LG500 chain and a Shimano CUES RD-U6000 GS, 10-speed derailleur, shifting is seamless and reliable, ensuring you're always in the right gear. The bike's stopping power is provided by Shimano CUES U6030 disc brakes, capable of accommodating up to 180 mm discs at the front and 160 mm at the rear, allowing for precise braking in all conditions. The VEE Tire Speedster tyres, available in sizes to fit XS-S: 650B x 38 C and M-XL: 700C x 40C, offer excellent traction and control, whether you're on gravel or tarmac. The Seido Comp saddle and Seido Yew Aluminum seatpost ensure comfort during long rides, while the Neco H282, EC34/28,6-EC34/30 headset guarantees smooth steering. This gravel bike is not just about performance; it's about expanding your horizons and making every ride an adventure. Whether you're a man or woman, the Bombtrack Arise SG CUES 1x10 is your ticket to exploring more.
